ELEGOO Mars / Mars Pro 2K Mono LCD Upgrade Kit
Upgrade your ELEGOO Mars or Mars Pro from the original RGB LCD to a 6.08-inch 2K monochrome LCD with 1620 × 2560 resolution. The mono LCD is designed for higher light transmission, faster exposure, and longer screen life.
Why Upgrade to a Mono LCD?
The original ELEGOO Mars and Mars Pro use a 5.5-inch 2K RGB LCD. This upgrade replaces the original screen with a larger 6.08-inch 2K monochrome LCD.
Monochrome LCD technology offers higher UV light transmission than traditional RGB LCDs, allowing shorter exposure times and improved printing efficiency.
- 6.08-inch 2K monochrome LCD
- 1620 × 2560 resolution
- Higher UV light transmission
- Shorter exposure times compared with RGB LCD
- Longer expected screen lifespan
- Designed for ELEGOO Mars / Mars Pro
Faster Printing Speed
The monochrome LCD provides better UV light transmission than the original RGB LCD. This allows resin to cure with shorter exposure times. The settings used by our team are approximately 2.5 seconds exposure compared with approximately 8–12 seconds for the original RGB LCD, depending on the resin and printing conditions.
Longer Screen Lifespan
Monochrome LCD technology is designed for prolonged exposure to UV light. Our testing and product documentation indicate an expected lifespan of over 2,000 hours, compared with approximately 200 hours for the original RGB LCD.
Improved Contrast and Detail
A monochrome LCD designed for resin 3D printing provides improved contrast compared with the original RGB screen, helping reproduce sharper details and edges on printed models.
Compatibility and Motherboard Requirements

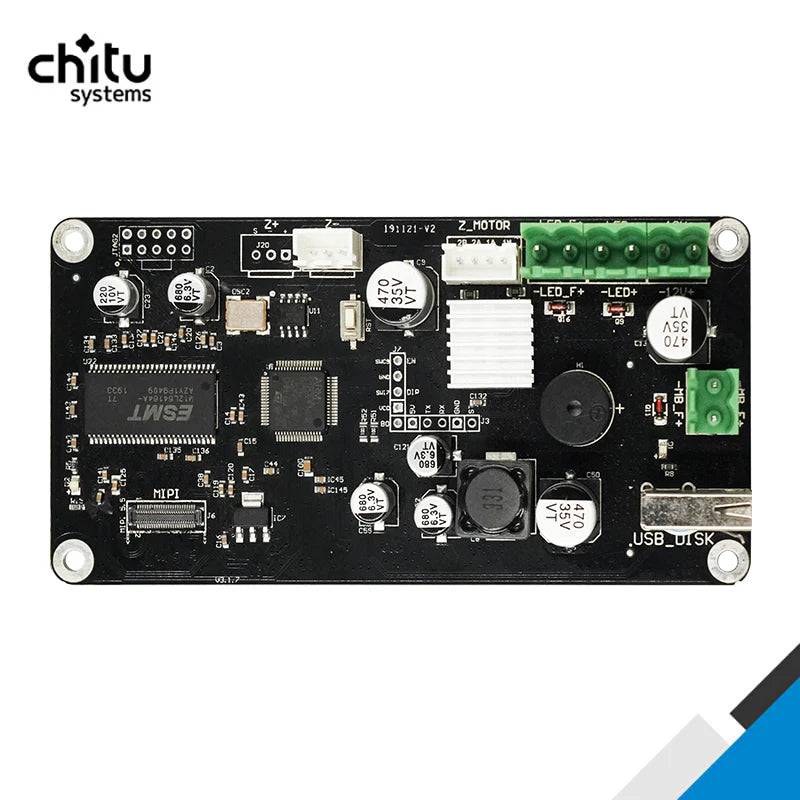

For ELEGOO Mars and Mars Pro, the upgrade kit can be installed directly on compatible V2/C motherboards.
Some early ELEGOO Mars / Mars Pro printers use an L5.5-10.1 board, which does not support this FHD/mono LCD upgrade. Please verify your motherboard version before ordering.
Firmware Update Required
Because this upgrade replaces the original LCD with a monochrome screen, the printer firmware must be updated before printing.
You only need to update the required .CBD and .SH4 files.
Printer Compatibility
In our testing, this upgrade kit can also fit the original ELEGOO Mars. However, the original Mars uses a different UV LED light source, so print quality may not be the same as the Mars Pro or other mono-screen printers.
ELEGOO Mars 2 and Mars 2 Pro already come with monochrome LCDs, so this upgrade kit is not needed for those models.
For the original Anycubic Photon, an additional motherboard replacement is required to use this monochrome LCD upgrade.
Adjust CHITUBOX Settings After the Upgrade
After installing the upgrade kit, you can use the ELEGOO Mars 2 Pro settings as a starting point in CHITUBOX.
Because the physical printing area changes after the upgrade, the actual printing size will be larger than the original 5.5-inch screen but will not reach the full 6.08-inch screen area. Please use the recommended settings shown below.
Specifications
Frequently Asked Questions
What is this ELEGOO Mars / Mars Pro Mono LCD Upgrade Kit?
It replaces the original RGB LCD in compatible ELEGOO Mars and Mars Pro printers with a 6.08-inch 2K monochrome LCD.
What resolution does the mono LCD have?
The upgraded screen uses a 1620 × 2560 resolution.
Which ELEGOO Mars motherboard is required?
The upgrade kit requires a compatible V2/C motherboard. Early Mars / Mars Pro printers with the L5.5-10.1 board do not support this mono LCD upgrade.
Do I need to update the firmware?
Yes. The firmware must be updated after installing the mono LCD.
Are Mars 2 and Mars 2 Pro compatible with this upgrade kit?
Mars 2 and Mars 2 Pro already come with monochrome LCD screens, so this upgrade kit is not necessary for those printers.
Do I need to change my CHITUBOX settings after the upgrade?
Yes. The printable area changes after the upgrade, so the CHITUBOX printer settings should be adjusted accordingly.
